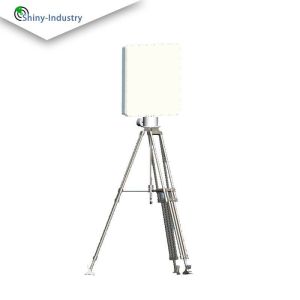

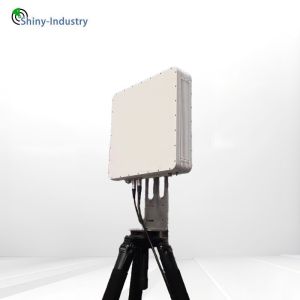

Customizable Professional Surveillance Radar System with Comprehensive Detection Features and Ground Steel Bracket Mounting

Basic Information

Model NO.	RS1500A
Operating frequency	24GHz-24.25GHz
Swept bandwidth	30MHZ
Data rate	3HZ
Azimuth scan range	±45°
Pitch coverage	15°
Maximum number of objects that can be detected	100
Maximum Detection Range	1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance	≤5m
Target velocity range	0.5m/s~35m/s(1.8km/h~126km/h)

Packaging & Deliver

weight	≤5kg
Structural dimensions	350mm×350mm×55mm
Ingress protection	IP66

Radar working diagram

peculiarity

Our RS1500A radar products excel in detecting dynamic targets, such as individuals, vehicles, and marine vessels within their range of sight. They provide critical data on distance, azimuth, and speed, and support synchronous reporting of multiple targets. Leveraging this precise information, they seamlessly integrate with cameras and optoelectronic devices for advanced tracking, precise positioning, accurate identification, and comprehensive event documentation.

Radar technology asserts its pivotal role across a multitude of scenarios, including smart shipping solutions, fishery protection initiatives, and strategic bridge collision deterrence. It enhances ship traffic surveillance, bolsters fishery management, and excels in watercraft detection. Moreover, it safeguards infrastructure through vigilant security and maintenance, spanning substations, detention centers, and oil pipelines. In the realm of transportation, it fortifies airport perimeter security, ensures railway safeguarding, and facilitates highway traffic management. These radars boast exceptional performance, competitive pricing, and an open interface, seamlessly integrating with cameras, infrared devices, and more.

Features

Primarily designed for robust border defense and securing critical locations, this radar is adept at monitoring individuals, vehicles, ships, and other targets. Its standout features include:

Multiple Transceiver Channels: Featuring a sophisticated setup of 3 transmitters alongside 32 receivers, utilizing Frequency Modulated Continuous Wave (FMCW) radar technology within a phased array system.
High Detection Power: Remarkable detection capabilities extending over 1,000 meters for pedestrians and exceeding 2,000 meters for vehicles and boats.

High Measurement Accuracy: Exhibiting exceptional precision with angle measurement accuracy reaching 0.3°, coupled with a ranging accuracy of 2 meters.
Designed to accommodate multiple operating frequency bands, ensuring the mitigation of co-channel interference.

Equipped with capabilities to define and defend strategic zones, effectively minimizing false alarms beyond the core areas.

Incorporating advanced machine learning algorithms, the system adeptly identifies and distinguishes both large and small targets, empowering users with the ability to selectively screen targets with precision.
